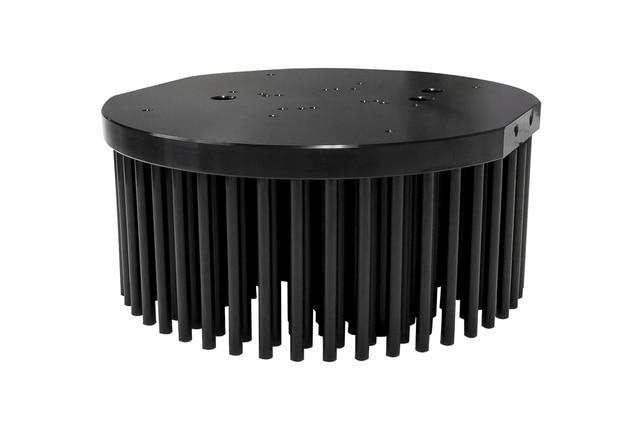

160mm Pin Heatsink

$25.00


Features

Heatsink comes with two flat sides for easier mounting, two through holes for wire routing, and includes 4 screws for mounting the heatsink as well as 4 screws for mounting your COB/holders.

This is the same heatsink used in our 75W and 100W Plug and Play fixtures. Please note this item will NOT fit our Rail/Substrate system.

Due to the nature of the product some pins may move slightly during shipping. Feel free to move the pins back to their original position using a string, empty ball point pen case, or your finger and a light pull

Specifications

SKU : PN-160MM

Weight : 1.90 Lbs

Dimensions : 160mm Diameter, 155mm Flat End To End

Height : 70mm

Compatible LEDs/Holders : See Features For Full List

Max Power Dissipation : ~80-120W Depending On Ambient Temperature

Color : Black

Included Screws : M3 X 8

Compatible LEDs

-Ideal solderless holder 50-2303CR for CREE CXA/CXB3590
-Ideal solderless holder 50-22XX for CXA/CXB3050/3070
-BJB 47.319.2154.50 for CXA/CXB3050/3070
-Bridgelux VERO29 Gen 7 (both with and without poke-in connector)
-Chilled Logic Pucks
