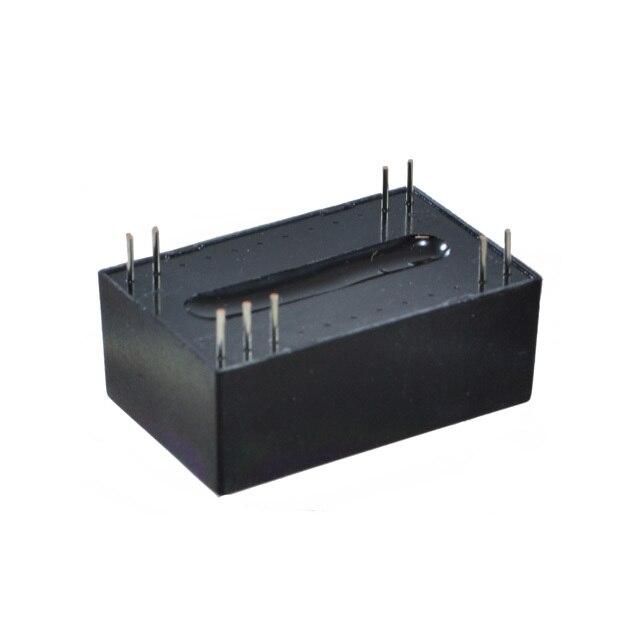

Mean Well NLDD-700H dimmable driver
$7.50
.
Features
DC to DC constant current driver for driving ~2-15 x 3V LEDs (depending on your power supply and LEDs). Output voltage is always 2-3V less than input voltage
These drivers will require a DC power supply unlike the Meanwell HLG or LPC drivers
Comes with pins for easier installation on the LDD-H-4S board
Capable of dimming down to 1% using a PWM controller
Specifications
SKU : NLDD-700H
Output Voltage (DC) : 6-52V (Output Range Will Always Be 3V Lower Than Input)
Max Output Current : 700mA
Input Voltage (DC) : 10 ~ 56VDC
Dimming Signal : 2.5-5V PWM
Efficiency : 97% At Full Load
Dimensions : 1.25" X 0.8" X 0.48"
Weight : 15.6g
Instructions
Features
DC to DC constant current driver for driving ~2-15 x 3V LEDs (depending on your power supply and LEDs). Output voltage is always 2-3V less than input voltage
These drivers will require a DC power supply unlike the Meanwell HLG or LPC drivers
Comes with pins for easier installation on the LDD-H-4S board
Capable of dimming down to 1% using a PWM controller
Specifications
SKU : NLDD-700H
Output Voltage (DC) : 6-52V (Output Range Will Always Be 3V Lower Than Input)
Max Output Current : 700mA
Input Voltage (DC) : 10 ~ 56VDC
Dimming Signal : 2.5-5V PWM
Efficiency : 97% At Full Load
Dimensions : 1.25" X 0.8" X 0.48"
Weight : 15.6g
