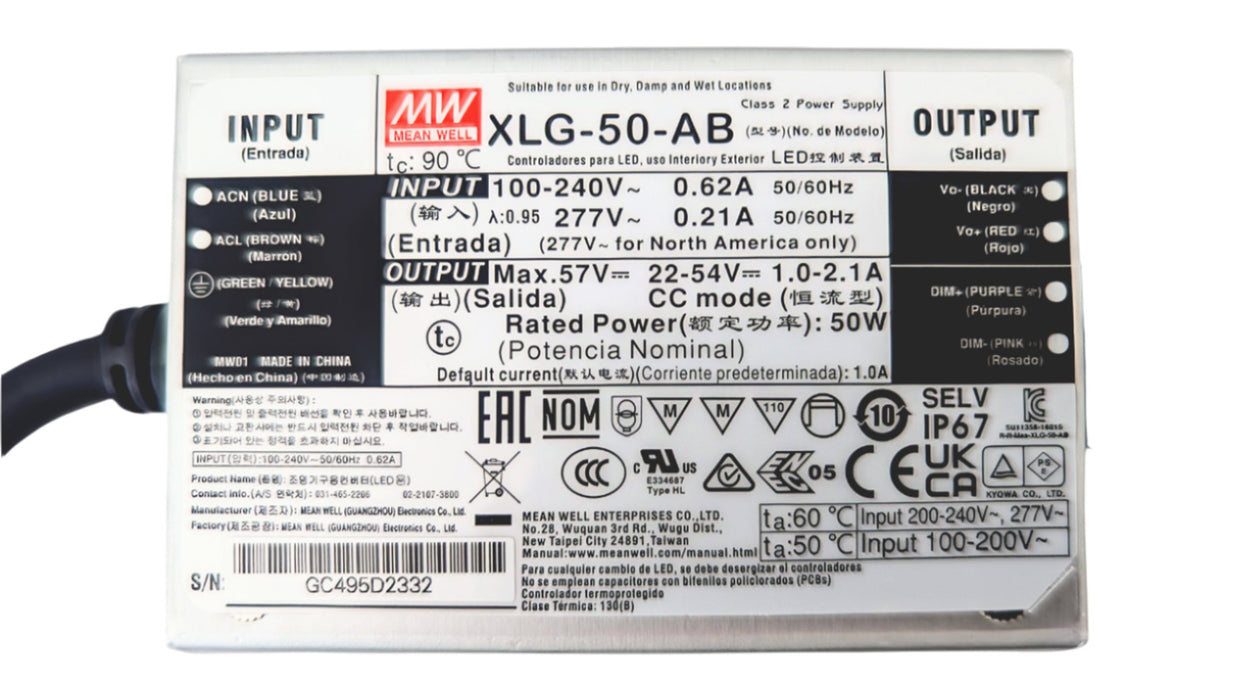

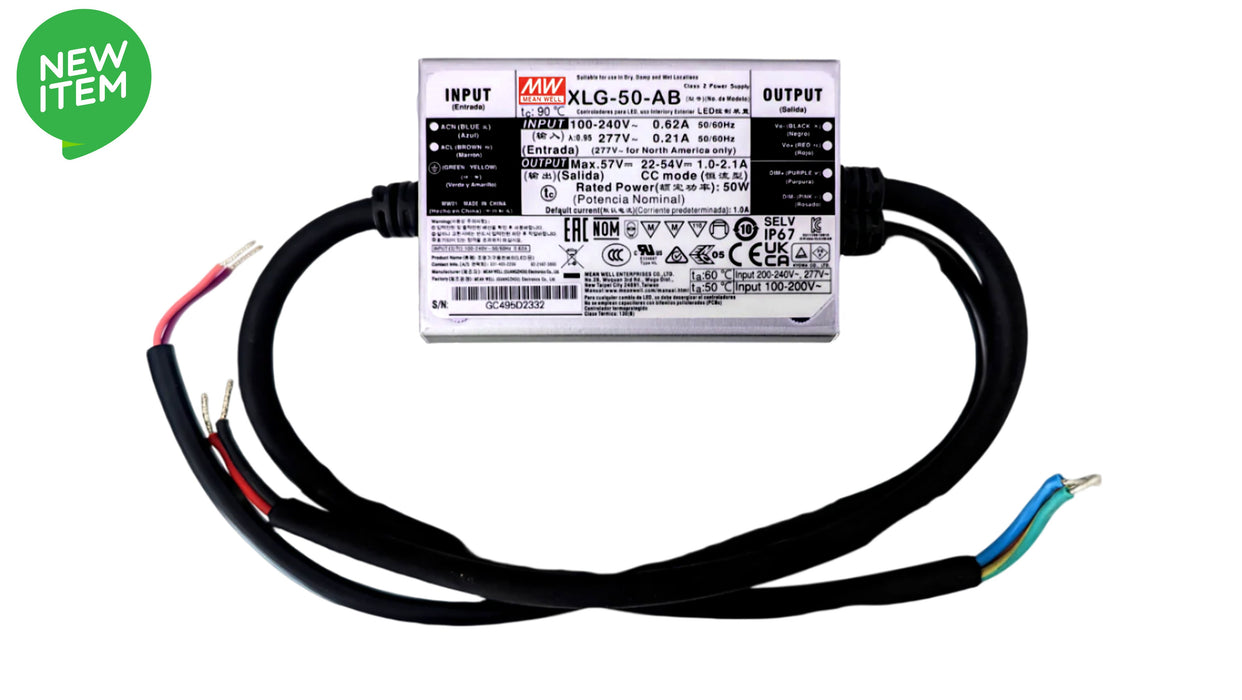

Mean Well XLG-50-AB
$45.00
.
Features
Perfect driver for smaller strings all colored LEDs (except UVA and IR)
This driver can be dimmed with an external controller/potentiometer. Not attaching anything to the dimming wires will run the driver at 100% current output (1000mA)
A power cord does not come with the driver and will need to be purchased separately
Specifications
SKU : XLG-50-AB
Rated Power : 50W
Output Voltage (DC) : 22-54V (~7-16 X 3V LEDs)
Max Output Current : 1000mA (can be adjusted up to 2100 mA through built-in potentiometer)
Input Voltage (AC) : 100-305VAC
AC Current : 0.57A/115VAC, 0.29A/230VAC
Dimming Signal : 0-10V Analog, 10V PWM, Resistance
Efficiency : 90%
Dimensions : 4.13" X 2.48" X 1.18"
Weight : .9 lbs
Datatsheet
Features
Perfect driver for smaller strings all colored LEDs (except UVA and IR)
This driver can be dimmed with an external controller/potentiometer. Not attaching anything to the dimming wires will run the driver at 100% current output (1000mA)
A power cord does not come with the driver and will need to be purchased separately
Specifications
SKU : XLG-50-AB
Rated Power : 50W
Output Voltage (DC) : 22-54V (~7-16 X 3V LEDs)
Max Output Current : 1000mA (can be adjusted up to 2100 mA through built-in potentiometer)
Input Voltage (AC) : 100-305VAC
AC Current : 0.57A/115VAC, 0.29A/230VAC
Dimming Signal : 0-10V Analog, 10V PWM, Resistance
Efficiency : 90%
Dimensions : 4.13" X 2.48" X 1.18"
Weight : .9 lbs
